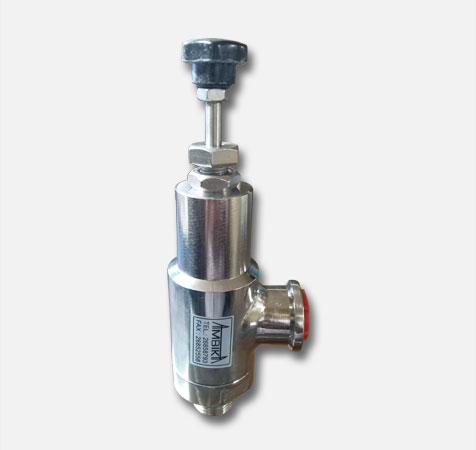

safety valve
Salient Features and Specialities:
- Positive shut off
- Longer life
- Quick in action
- No lubrication
- Visual on / off indication
- Compact design
- Corrosion resistant
- Low pressure drop
- Simplicity
- Designs available in one piece / two piece / three piece
- Available in both regular port & full port patterns

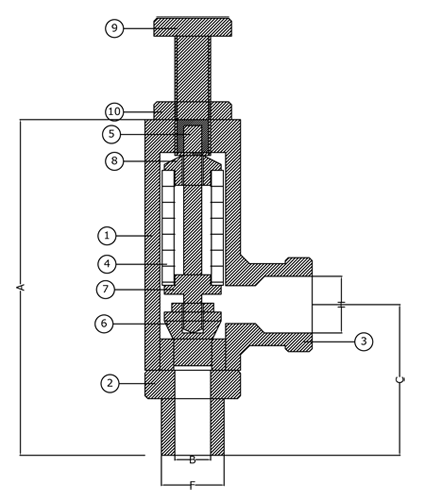

| Sr.No. | NAME OF PARTS | MATERIAL |
|---|---|---|
| 1 | BODY | A.I.S.I. 304 |
| 2 | ADAPTOR | A.I.S.I. 304 |
| 3 | SIDEBUSH | A.I.S.I. 304 |
| 4 | SPRING | A.I.S.I. 304 |
| 5 | SPINDLE | A.I.S.I. 304 |
| 6 | SEAT | A.I.S.I. 304 |
| 7 | SPRINGWASHER | A.I.S.I. 304 |
| 8 | SPRINGWASHER | A.I.S.I. 304 |
| 9 | HEX.BOLT | A.I.S.I. 304 |
| 10 | HEX.NUT | A.I.S.I. 304 |
| SIZE | A | B | C | F | H | SET PRESSURE |
|---|---|---|---|---|---|---|
| 1/2" | 112 | 12 | 50 | 1/2" bsp.male | 1/2" bsp.female | 2 to 10 KG. |
| 3/4" | 134 | 19 | 61 | 3/4" bsp.male | 3/4" bsp.female | 2 to 10 KG. |
| 1" | 138 | 25 | 66 | 1" bsp.male | 1" bsp. female | 2 to 10 KG. |
| 11/2" | 245 | 38 | 84 | 11/2" bsp.male | 11/2" bsp. female | 22 KG. |
