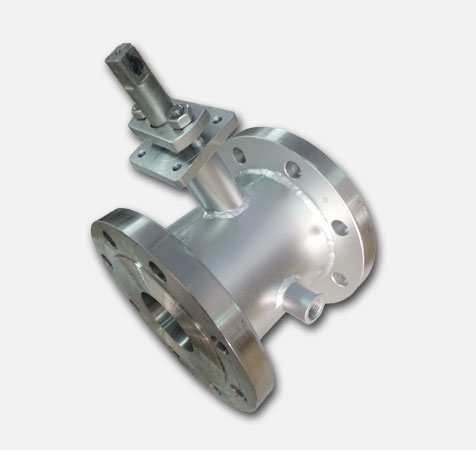

JACKETED angular flush bottom BALL valve
Salient Features and Specialities:
- Specially Designed for 300oC fluid (Hot Oil / Steam / Hot water / Cold Water)
- Positive shut off
- Longer life
- Quick in action
- No lubrication
- Visual on / off indication
- Compact design
- Corrosion resistant
- Low pressure drop

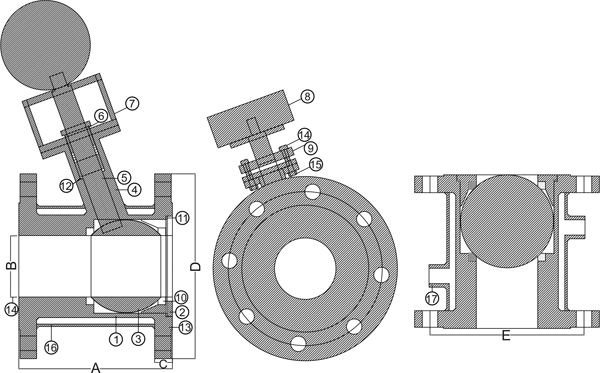

| Sr.No. | NAME OF PARTS | MATERIAL |
|---|---|---|
| 1 | BODY | A.I.S.I.304 / 316 |
| 2 | ADAPTOR | A.I.S.I.304 / 316 |
| 3 | BALL | CF.8 / C.F.8M. |
| 4 | BONNET | A.I.S.I.304 / 316 |
| 5 | SPINDLE | A.I.S.I.304 / 316 |
| 6 | GLANDRING | A.I.S.I.304 |
| 7 | ACT.MOUNT.BREAKET | S.S. / M.S. |
| 8 | ACTUATOR | |
| 9 | GL.RINGPATA | A.I.S.I.304 |
| 10 | SEAL | P.T.F.E. |
| 11 | BODYSEAL | P.T.F.E |
| 12 | GLANDSEAL | P.T.F.E |
| 13 | 4"A.S.A.150 FLANGE | A.I.S.I.304 / 316 |
| 14 | 3/8 BSWHEXBOLT | A.I.S.I.304 |
| 15 | 3/8 BSWHEXBOLT | A.I.S.I.304 |
| 16 | JACKETPIPE | A.I.S.I.304 |
| 17 | 1/2"BSPCOUPLINE | A.I.S.I.304 |
| SIZE | A | B | C | D | E |
|---|---|---|---|---|---|
| 4"x3" (N.B.) | 190 | 76 | 22 | 228Ø (4" A.S.A.150) | 190.5 mm P.C.D.19 mm. HOLE - 8 NOS. |
