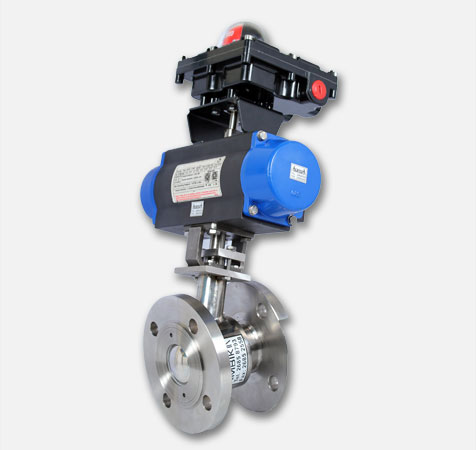

angular flush bottom BALL valve
Salient Features and Specialities:
- Positive shut off
- Longer life
- Quick in action
- No lubrication
- Visual on / off indication
- Compact design
- Corrosion resistant
- Low pressure drop

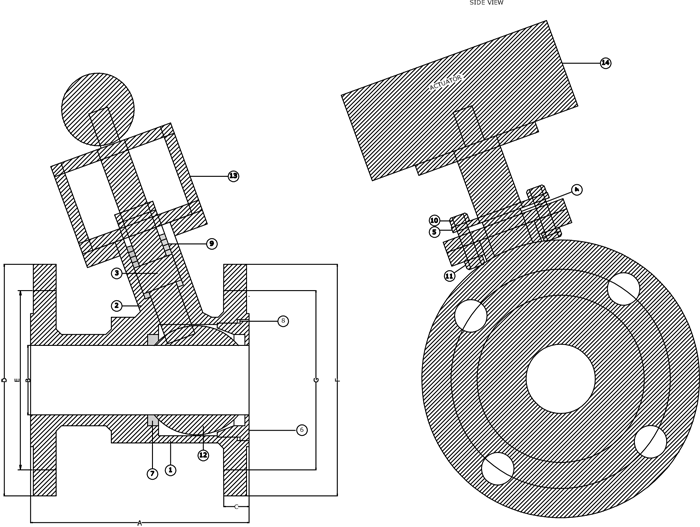

| Sr.No. | NAME OF PARTS | MATERIAL |
|---|---|---|
| 1 | BODY | A.I.S.I 316 |
| 2 | BONNET | A.I.S.I 316 |
| 3 | SPINDLE | A.I.S.I 316 |
| 4 | G.RING | A.I.S.I 316 |
| 5 | GLANDPATI | A.I.S.I 304 |
| 6 | ADAPTOR | A.I.S.I 316 |
| 7 | SEAT | P.T.F.E. |
| 8 | BODY SEAL | P.T.F.E. |
| 9 | GLAND SEAL | P.T.F.E. |
| 10 | HEX.BOLT | A.I.S.I 304 |
| 11 | HEX.NUT | A.I.S.I 304 |
| 12 | BALL | A.I.S.I 316 |
| 13 | BREAKET | A.I.S.I 304 |
| 14 | ACTUATOR | H |
| SIZE | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| 40 (N.B.) | 120 | 38 | 14 | 127 (11/2" A.S.A. - 150) | 98.4 PCD. (14 MM HOLE. - 4 NOS.) |
152 (2" A.S.A - 150) | 120.5 PCD. (19 MM HOLE. - 4 NOS.) |
| 50 (N.B.) | 120 | 51 | 15 | 152 (2" A.S.A - 150) | 120.5 PCD. (19 MM HOLE. - 4 NOS.) |
190 (3" A.S.A - 150) | 152 PCD. (19 MM HOLE. - 4 NOS.) |
| 80 (N.B.) | 190 | 76 | 18 | 190 (3" A.S.A - 150) | 152 PCD. (19 MM HOLE. - 4 NOS.) |
229 (4" A.S.A - 150) | 191 PCD. (19 MM HOLE. - 8 NOS.) |
| 100 (N.B.) | 200 | 101 | 23 | 279 (6" A.S.A - 150) | 191 PCD. (19 MM HOLE. - 4 NOS.) |
229 (4" A.S.A - 150) | 241 PCD. (22 MM HOLE. - 8 NOS.) |

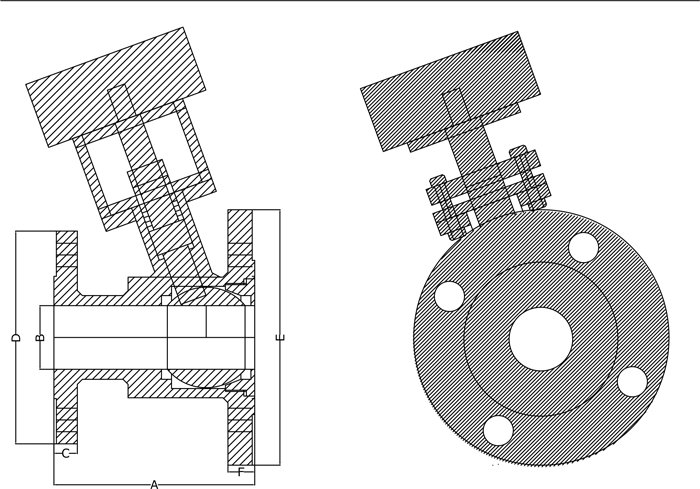

| SIZE | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| 40 (N.B.) | 120 M.M. | 38 M.M. | 14 M.M. | 127 (11/2" A.S.A. - 150) | 152(2"ASA.150.) | 16M.M. |
| 50 (N.B.) | 120 M.M. | 51 M.M. | 16 M.M. | 152 (2" A.S.A - 150) | 190(3"ASA.150.) | 18M.M. |
| 80 (N.B.) | 190 M.M. | 76 M.M. | 18 M.M. | 190 (3" A.S.A - 150) | 229(3"ASA.150.) | 20M.M. |
| 100 (N.B.) | 200 M.M. | 101 M.M. | 20 M.M. | 229 (6" A.S.A - 150) | 279(3"ASA.150.) | 23M.M. |
| 150 (N.B.) | 230 M.M. | 150 M.M. | 23 M.M. | 279 (6" A.S.A - 150) | 343(3"ASA.150.) | 27M.M. |
