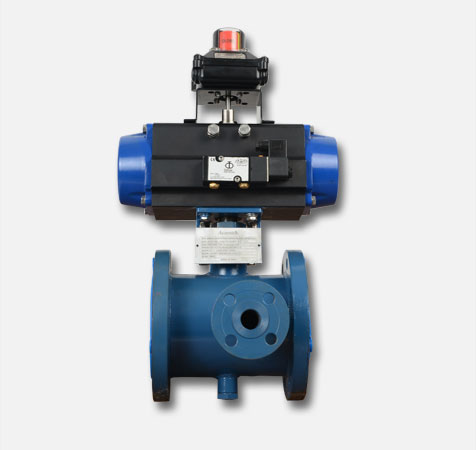

ACTUATOR OPERATED JACKETED BALL valve
Salient Features and Specialities:
- Specially Designed for 300oC fluid (Hot Oil / Steam / Hot water / Cold Water)
- Positive shut off
- Longer life
- Quick in action
- No lubrication
- Visual on / off indication
- Compact design
- Corrosion resistant
- Low pressure drop

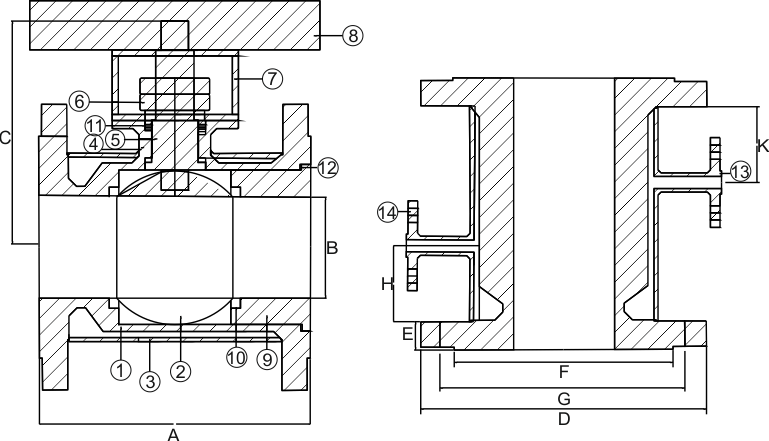

| Sr.No. | NAME OF PARTS | MATERIAL |
|---|---|---|
| 1 | BODY | CF.8 / WCB. |
| 2 | BALL | A.I.S.I 304 / 316 |
| 3 | JACKET PIPE | M.S. |
| 4 | GLAND NUT | A.I.S.I S.S. 304 |
| 5 | STEM | A.I.S.I. S.S. -316 |
| 6 | BONNET | CF.8 / WCB. |
| 7 | BREAKET | CF.8 / WCB. |
| 8 | ACTUATOR | ALUMINIUM |
| 9 | HANDLE | CF.8 / WCB. |
| 10 | SEAT RING | PEAK RING |
| 11 | STEM PACKING | GLASS FIELD P.T.F.E |
| 12 | BODY SEAL | GLASS FIELD P.T.F.E |
| 13 | 1"asa.150inletconect. | M.S. |
| 14 | 1"asa.150inletconect. | M.S. |
| TEST PRESSURES IN PSIG | ||
|---|---|---|
| HYDROSTATIC | AIR | |
| BODY | SEAT | SEAT |
| 30 KG / CM2 | 21 KG / CM2 | 7 KG / CM2 |
| SIZE | A | B | C | D | E | F | G | H | K |
|---|---|---|---|---|---|---|---|---|---|
| 1" x 11/2" | 165 | 25 | 75 | 127 | 14 | 73 | 98.5 PCD 14 hole x 4no | 60 | 60 |
| 11/2 x 2' | 178 | 38 | 80 | 152 | 16 | 92 | 120.5 PCD 18 hole x 4no | 60 | 60 |
| 2"x3" | 203 | 50 | 118 | 190 | 18 | 127 | 152.5 PCD 19 hole x 4no | 63 | 63 |
| 3" x 4" | 229 | 75 | 216 | 229 + | 124 | 157 | 190.5 PCD 19 hole x 8no | 63 | 63 |
| 4" x 6" | 267 | 100 | 225 | 280 + | 125 | 216 | 241.5 PCD 22 hole x 8no | 75 | 75 |
| 6" x10" | 292 | 150 | 340 | 406.5 | 30 | 324 | 362.5 PCD 25 hole x 12no | 95 | 95 |
